WireGuard Networking Guide

Build virtual LANs with WireGuard for secure device interconnection

📋 Table of Contents

What is WireGuard Networking
Quick Start
Advanced Optimization
Self-Maintained Edge Configuration
Troubleshooting
Platform-Specific Guides

What is WireGuard Networking

Core Concepts

WireGuard networking is YAT's advanced networking feature that uses the WireGuard protocol to establish virtual LANs (VPNs) between multiple devices. Unlike traditional tunnel modes, WireGuard networking provides:

🌐 Virtual LAN - All members share the same IP subnet
🔐 End-to-end encryption - WireGuard kernel-level encryption
🚀 High performance - Near-native network performance
🔄 Smart routing - Automatic direct or relay path selection

How It Works

┌─────────────────────────────────────────────────────┐
│                  WireGuard Network                   │
│                                                     │
│  ┌──────────┐         ┌──────────┐                 │
│  │ Device A │◄───────►│ Device B │                 │
│  │ 10.0.0.2 │ direct  │ 10.0.0.3 │                 │
│  └──────────┘   or    └──────────┘                 │
│       │        relay       │                        │
│       │                    │                        │
│       ▼                    ▼                        │
│  ┌──────────┐         ┌──────────┐                 │
│  │ Device C │◄───────►│ Device D │                 │
│  │ 10.0.0.4 │         │ 10.0.0.5 │                 │
│  └──────────┘         └──────────┘                 │
│                                                     │
│  Edge Server: Coordination + Relay (optional)      │
└─────────────────────────────────────────────────────┘

Comparison with Tunnel Mode

Feature	Tunnel Mode	WireGuard Networking
Connection	Point-to-point tunnel	Virtual LAN
IP Assignment	None	Automatic subnet IP
Multi-device	Multiple tunnels needed	Native support
Performance	Medium	Near-native
Use Case	Single service exposure	Multi-device interconnection

Quick Start

Prerequisites

✅ YAT client installed and logged in
✅ Subscribed to a WireGuard-enabled Edge server
✅ Edge server has WireGuard functionality enabled

Step 1: Create a WireGuard Network

Open YAT client, go to Networks page
Click Create Network button
Fill in network configuration:
- Network Name: Custom name (e.g., "My Office Network")
- CIDR: Recommended 10.0.0.0/24 (supports 254 devices)
- Relay Mode: Choose optional (recommended) or force

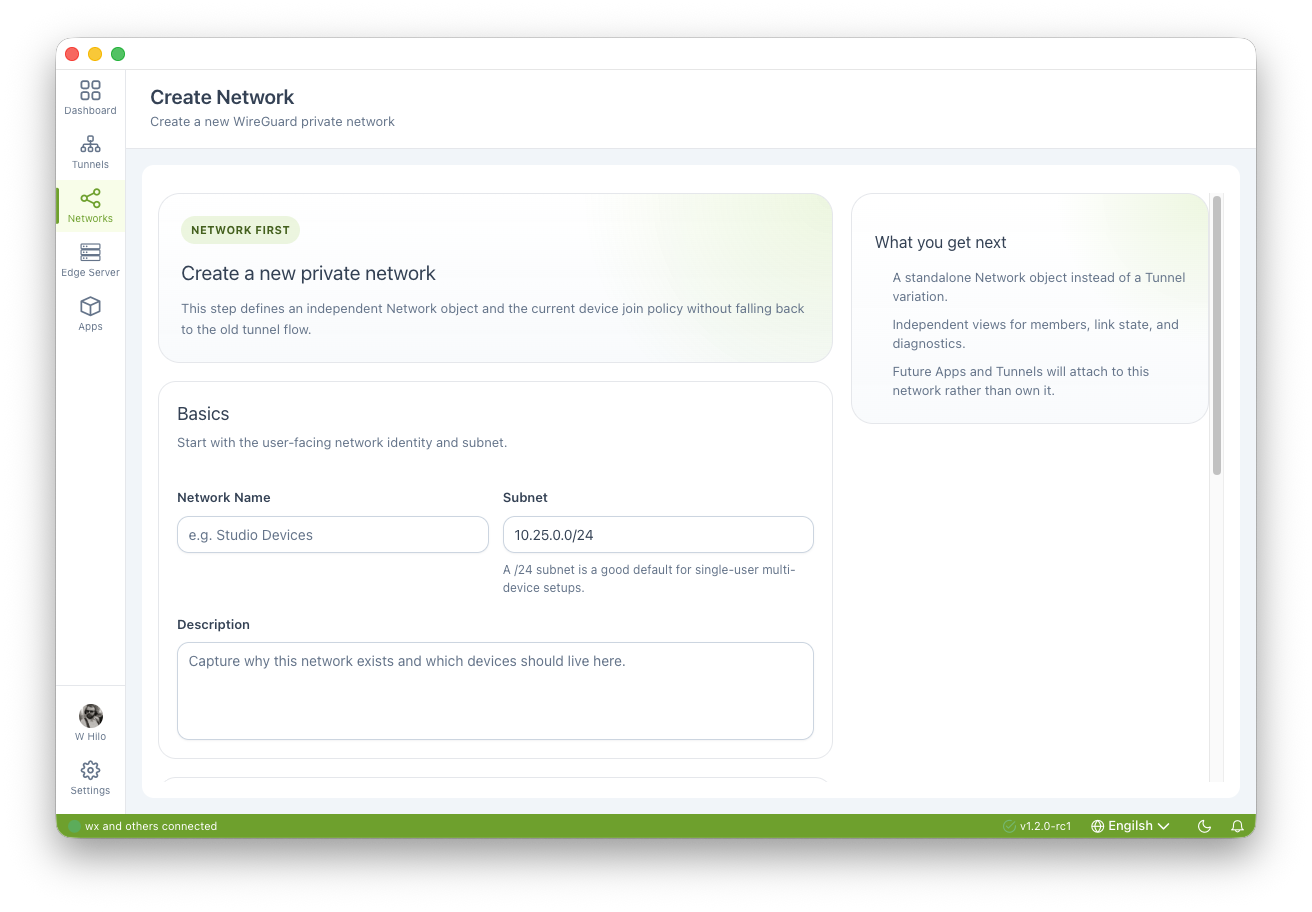

📸 [Screenshot placeholder] Create WireGuard network dialog
Description: Shows network name, CIDR input, relay mode selection

Click Create to complete

Step 2: Join Local Device

After creating the network, add your current device:

Click Join Local Device button on the network card
Wait for IP address assignment
Device status changes to Online

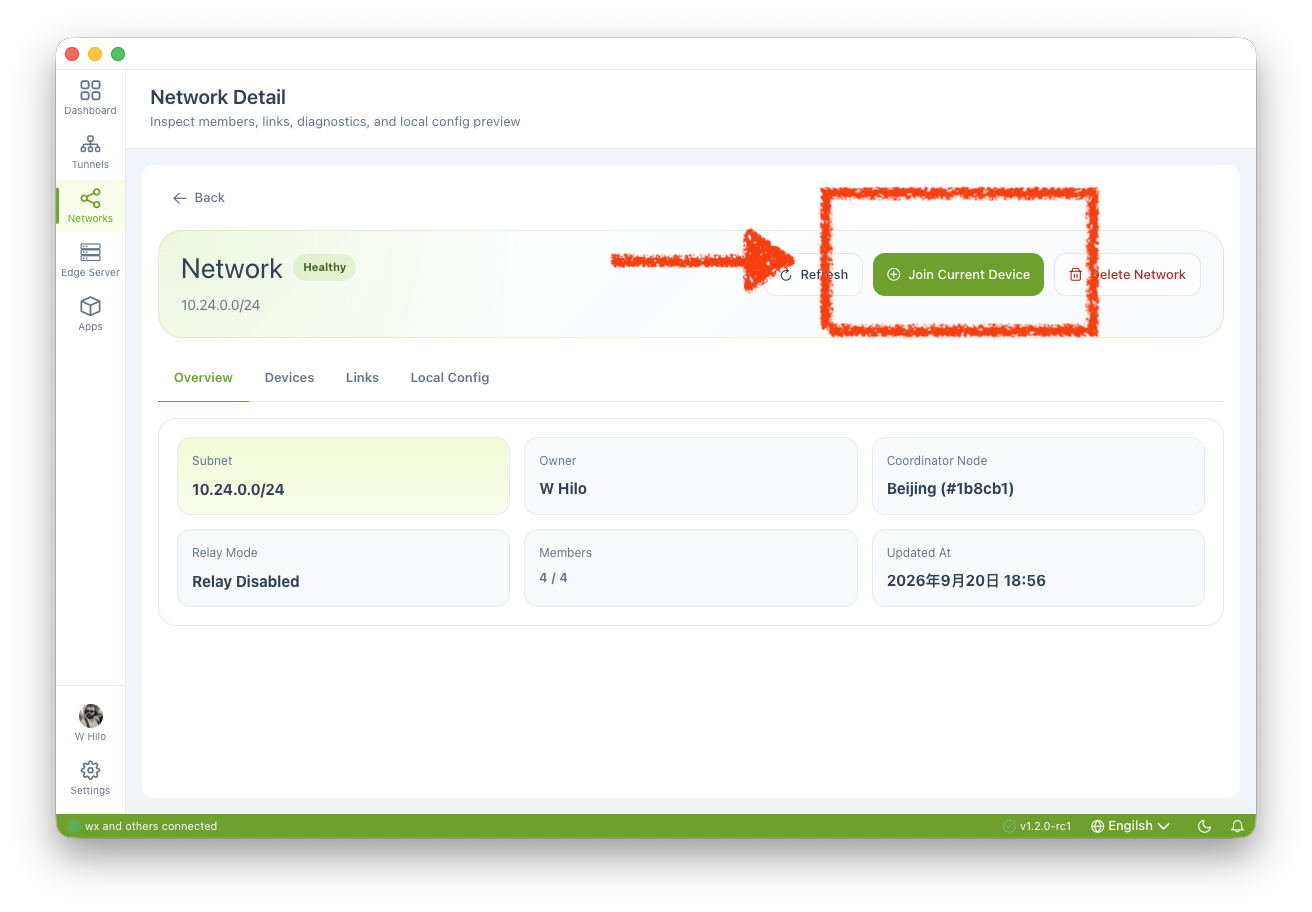

📸 [Screenshot placeholder] Network detail page - Join local device button
Description: Shows network card, join button, member list

TIP

Each device must click "Join Local Device" separately to participate in the network. This is a security design ensuring only explicitly authorized devices can join.

Step 3: Invite Other Devices

Steps for other devices to join:

Open YAT client on other devices
Go to Networks page
Find the target network (networks under the same Edge sync automatically)
Click Join Network
Wait for IP assignment

Step 4: Verify Connection

After joining, verify connectivity between devices:

bash

# Ping device B's internal IP from device A
ping 10.0.0.3

# Should see normal ICMP responses
64 bytes from 10.0.0.3: icmp_seq=1 ttl=64 time=2.5ms

📸 [Screenshot placeholder] Network member list - showing online status and IPs
Description: Shows member list, IP addresses, online status, connection quality

Step 5: View Connection Details

Click a member to view connection details:

Path: Direct or relay
Latency: Current connection latency
Endpoint: Peer's actual UDP address
Handshake Time: Last WireGuard handshake time

📸 [Screenshot placeholder] Member detail dialog - showing connection info
Description: Shows member details, connection path, latency, endpoint

Advanced Optimization

Relay Mode Selection

YAT supports three relay modes affecting connection strategy:

1. `optional` Mode (Recommended)

Device A ──Try direct──► Device B
          │
          ├─ Success → Use direct (low latency)
          │
          └─ Fail → Auto fallback to Edge relay

Features:

✅ Prioritizes direct connection for best performance
✅ Automatic fallback to relay if direct fails
✅ Suitable for most scenarios

Use Cases:

Mixed network environments (some devices on same LAN)
Cross-region devices with possible direct connection
Performance-critical scenarios

2. `force` Mode

Device A ──Force relay──► Edge Server ──Relay──► Device B

Features:

✅ Stable connection, unaffected by NAT type
⚠️ Higher latency (via Edge relay)
⚠️ Bandwidth limited by Edge

Use Cases:

Symmetric NAT environments (direct nearly impossible)
Stable connection needed, latency not critical
Debugging and testing

3. `disabled` Mode

Device A ──Direct only──► Device B
          │
          └─ Fail → Cannot connect

Features:

✅ Highest performance (pure direct)
❌ Cannot communicate if direct fails
❌ High NAT type requirements

Use Cases:

All devices on same LAN
All devices have public IPs
Extreme performance requirements

Switching Relay Mode

Go to network detail page
Click Settings or Edit button
Modify Relay Mode
After saving, all members sync automatically

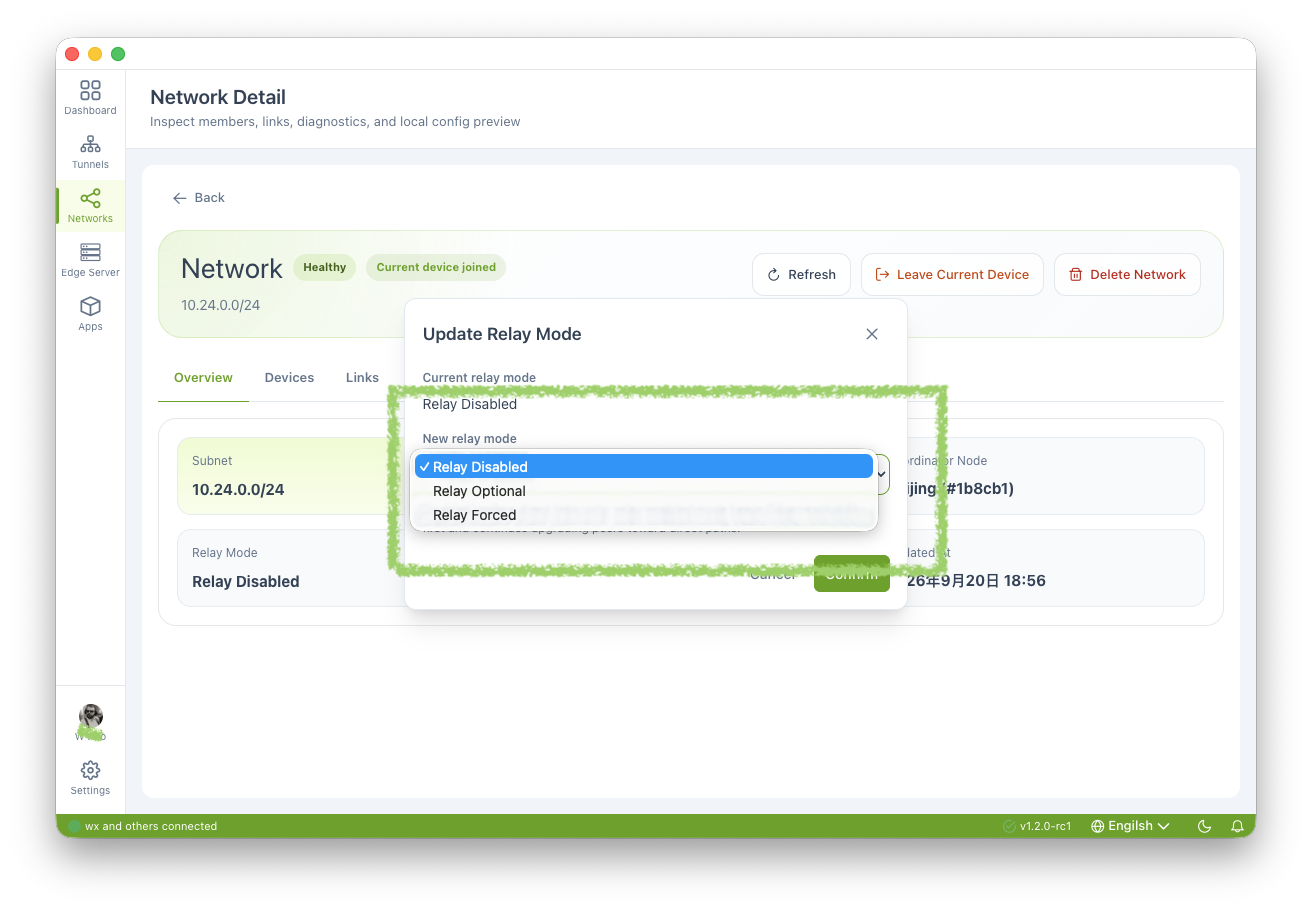

📸 [Screenshot placeholder] Network settings dialog - relay mode selection
Description: Shows three relay mode options

Understanding Connection Paths

YAT intelligently selects the optimal path:

Direct Path

Device A (192.168.1.100:51820) ──UDP──► Device B (192.168.1.101:51820)

Criteria:

WireGuard handshake successful
Authenticated payload received (not just handshake)
New data within 75 seconds

Advantages:

Lowest latency
Highest bandwidth
No Edge involvement

Relay Path

Device A ──UDP──► Edge (public-ip:59000) ──UDP──► Device B

Triggers:

Direct handshake timeout (30 seconds)
No direct data (75 seconds)
Force relay mode

Edge Relay Mechanism:

Each peer gets dedicated UDP port (59000-60999)
Edge forwards encrypted WireGuard packets
Different sources use independent upstream flows

P2P Session Status & Health Indicators

The health pill at the top of the network detail page reflects the aggregated status of all P2P sessions. Understanding these states helps troubleshoot connection issues.

Session Lifecycle

Direct connection negotiation between two devices goes through these stages:

Created → Gathering → Punching → Establishing → Connected
                                        ↘ Failed

Stage	Timeout	Description
Gathering	30s	Exchange endpoint info (public IP, LAN address, NAT type)
Punching	60s	Send WireGuard handshake attempts to peer endpoints
Establishing	30s	Wait for peer to confirm punch results
Connected	-	Negotiation succeeded, direct path available
Failed	-	Negotiation timed out or punching failed

Health Status Meaning

Status	Color	Meaning
Healthy	🟢 Green	All sessions connected
Partial	🟠 Orange	Some sessions failed, but relay fallback available or others connected
Error	🔴 Red	All sessions failed with no relay fallback
Offline	⚪ Gray	No online members

Session Shows Failed But Actually Connected

In some scenarios, the UI shows a session as "failed" but the network is actually working:

Why: P2P signaling (endpoint discovery & punching) and the actual WireGuard crypto handshake are two independent processes. Signaling timeout does not mean the tunnel is broken.
Auto-recovery: Edge's observation loop (every 5 seconds) detects actual WireGuard handshake state. When a working tunnel is detected, failed sessions are automatically recovered to "connected".
Recovery delay: At most 5-10 seconds.

TIP

If you see "failed" status but ping works fine, the WireGuard tunnel is actually established. Wait a few seconds for the UI to auto-update. If it doesn't recover, try clicking the Refresh button.

Expand the health banner to see details of each failed/pending session:

Session endpoints: {initiator} → {target}, showing device names
Status badge: Current negotiation stage
Error message: Failure reason (e.g. timeout, direct punch failed)

Common error messages:

Error	Meaning	Suggestion
`timeout`	Negotiation stage timed out	Check NAT type, consider switching to `force` mode
`direct punch failed, relay disabled`	Punching failed with no relay	Switch to `optional` mode to enable relay fallback
`direct punch failed, relay fallback remains active`	Punching failed but relay available	Normal, traffic is flowing through relay

Optimization Tips

1. Devices on Same LAN

If multiple devices are on the same LAN:

✅ Use optional or disabled mode
✅ Edge auto-detects Same-NAT devices
✅ Devices prioritize LAN address direct connection

📸 [Screenshot placeholder] Same-NAT detection notice
Description: Shows device pairs detected on same NAT

2. Cross-Region Devices

If devices are in different regions:

✅ Use optional mode
✅ Allow automatic relay fallback
✅ Consider deploying geographically central Edge

3. Symmetric NAT Environment

If devices are behind symmetric NAT:

✅ Use force mode
✅ All traffic via Edge relay
✅ Stable but higher latency

4. Performance-Sensitive Scenarios

For best performance:

✅ Ensure devices can connect directly
✅ Use optional or disabled mode
✅ Check firewall allows UDP traffic

Self-Maintained Edge Configuration

Edge WireGuard Requirements

Self-maintained Edge needs WireGuard enabled:

yaml

# Edge configuration (config.yaml)
proxy:
  wireguard:
    enabled: true              # Enable WireGuard
    relay:
      enabled: true            # Enable business relay
      interface_prefix: "wg-yat0"
      listen_port_base: 58021  # WG interface port base
      peer_relay_port_base: 59000  # Peer relay port base
      key_dir: "/var/lib/yat/wg-keys"
      public_endpoint: "edge.example.com"  # Edge public address

Key Configuration Explained

1. `enabled: true`

Enables WireGuard functionality. Edge will:

Create WireGuard observation interface
Initialize relay manager
Start endpoint observation loop

2. `relay.enabled`

Controls business relay:

true: Creates per-peer relay listeners, supports relay forwarding
false: Only keeps observation interface, no relay support

TIP

Even with relay.enabled=false, Edge can still observe endpoints. Clients just can't use relay paths.

3. `listen_port_base: 58021`

WireGuard interface port base. Each network uses one port:

Network 1: 58021
Network 2: 58022
...

Firewall requirements:

bash

# Allow WG interface ports
sudo ufw allow 58021:58100/udp

4. `peer_relay_port_base: 59000`

Per-peer relay port base. Each peer gets dedicated port:

Peer A: 59000
Peer B: 59001
...

Port range: 59000-60999 (supports 2000 peers)

Firewall requirements:

bash

# Allow peer relay ports
sudo ufw allow 59000:60999/udp

5. `public_endpoint`

Edge's public address. Clients use this for relay:

Client A ──UDP──► edge.example.com:59000 ──Forward──► Client B

Format requirements:

✅ edge.example.com
✅ 1.2.3.4
✅ 1.2.3.4:8000 (if Edge on non-standard port)
❌ http://edge.example.com (no protocol)

Deployment Verification

After deploying Edge, verify WireGuard:

bash

# 1. Check Edge logs
journalctl -u yat-edge -f | grep -i wireguard

# Should see:
# "WireGuard functionality enabled"
# "Relay manager initialized"
# "Observation loop started"

# 2. Check WireGuard interfaces
sudo ip link show | grep wg-yat

# Should see similar:
# wg-yat0-abc123: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1420

# 3. Check listening ports
sudo ss -ulnp | grep yat-edge

# Should see:
# udp  0  0  0.0.0.0:58021  0.0.0.0:*  users:(("yat-edge",pid=1234))
# udp  0  0  0.0.0.0:59000  0.0.0.0:*  users:(("yat-edge",pid=1234))

Common Configuration Issues

Q: Edge fails to start with "WireGuard initialization failed"

Causes:

Kernel doesn't support WireGuard (needs Linux 5.6+)
Missing permissions to create network interfaces

Solution:

bash

# Check kernel version
uname -r

# If < 5.6, upgrade kernel
sudo apt install linux-image-generic

# Ensure Edge runs as root
sudo systemctl start yat-edge

Q: Clients can't connect to relay

Causes:

Firewall not allowing ports
public_endpoint misconfigured
Edge relay not enabled

Solution:

bash

# 1. Check firewall
sudo ufw status
sudo ufw allow 58021:60999/udp

# 2. Verify public_endpoint
curl -I http://edge.example.com

# 3. Check Edge config
grep -A 10 "wireguard:" /etc/yat/config.yaml

Q: Relay mode switch doesn't take effect

Causes:

Config not synced to all members
Clients haven't refreshed runtime

Solution:

Modify relay mode on Edge
All clients click Sync Local Adapter button
Wait 5-10 seconds for config to apply

Troubleshooting

Issue 1: Need to Manually Click "Join Local Device"

Symptom: After creating network, current device didn't auto-join, need to manually click "Join Local Device".

Cause: This is security design. YAT doesn't auto-add devices to networks, requiring explicit user authorization.

Solution:

Find Join Local Device button on network card
Click and wait for IP assignment
Device status Online means join successful

📸 [Screenshot placeholder] Join local device button
Description: Shows join button on network card

Issue 2: Networking Fails, Try "Sync Local Adapter"

Symptom: Device joined network but can't ping other members.

Causes:

Local WireGuard config not synced
Helper daemon didn't apply config correctly
Runtime inconsistent with config

Solution:

Go to network detail page
Find Sync Local Adapter button (usually in config panel or action menu)
Click and wait for sync to complete
Check if WireGuard interface appears

macOS:

bash

# Check WireGuard interfaces
ifconfig | grep -A 5 utun

# Should see similar:
# utun3: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> mtu 1420
#     inet 10.0.0.2 --> 10.0.0.1 netmask 0xffffffff

Windows:

powershell

# Check network adapters
Get-NetAdapter | Where-Object {$_.InterfaceDescription -like "*WireGuard*"}

# Should see similar:
# Name  InterfaceDescription                  Status
# ----  --------------------                  ------
# YAT   WireGuard Tunnel: yat-network1        Up

Issue 3: macOS WireGuard Debugging

Symptom: WireGuard interface not created or not working on macOS.

Debug Steps:

1. Check Helper Daemon

bash

# Check if yat-wg-helperd is running
ps aux | grep yat-wg-helper

# Should see:
# root  1234  0.0  0.1  /var/run/yat-wg-helperd

# If not running, start manually
sudo /Library/Application\ Support/yat/yat-wg-helperd

2. Check Unix Socket

bash

# Check socket file
ls -l /var/run/yat-wg-helper.sock

# Should see:
# srw-r--r--  1 root  wheel  0  9 18 10:00 /var/run/yat-wg-helper.sock

3. View Helper Logs

bash

# View helper daemon logs
log show --predicate 'process == "yat-wg-helperd"' --last 5m

# Or in YAT client:
# Settings > System > WireGuard Helper > View logs

4. Check boringtun Process

bash

# Check if boringtun is running
ps aux | grep boringtun

# Should see:
# root  5678  0.0  0.5  /Library/Application\ Support/yat/boringtun

5. Manual Helper Test

bash

# Use socat to communicate with helper
sudo socat - UNIX-CONNECT:/var/run/yat-wg-helper.sock

# Send JSON request
{"request":"status"}

# Should receive response
{"status":"ok","interfaces":["wg-yat0-abc123"]}

6. Force Re-apply

bash

# Remove all WireGuard interfaces
sudo ifconfig utun3 down
sudo ifconfig utun3 destroy

# Click "Sync Local Adapter" in YAT client
# Or restart YAT client

Issue 4: Windows Check Network Adapter Creation

Symptom: WireGuard network not working properly on Windows.

Check Steps:

1. Check Network Adapter

powershell

# Method 1: PowerShell
Get-NetAdapter | Where-Object {$_.InterfaceDescription -like "*WireGuard*"}

# Method 2: Command line
netsh interface show interface

# Method 3: Device Manager
# Open Device Manager > Network adapters > Look for "WireGuard" devices

Expected Result:

Name       InterfaceDescription         Status
----       --------------------         ------
YAT-NET1   WireGuard Tunnel: yat-net1   Up

2. Check IP Configuration

powershell

# View WireGuard adapter IP config
Get-NetIPAddress -InterfaceAlias "YAT-NET1"

# Should see assigned internal IP
# IPAddress      : 10.0.0.2
# PrefixLength   : 24
# AddressFamily  : IPv4

3. Check Route Table

powershell

# View routes
Get-NetRoute -InterfaceAlias "YAT-NET1"

# Should see network subnet route
# DestinationPrefix  NextHop  RouteMetric
# 10.0.0.0/24        0.0.0.0  256

4. Test Connectivity

powershell

# Ping other members
Test-Connection -ComputerName 10.0.0.3 -Count 4

# If fails, check firewall
# Windows Defender firewall may block ICMP
New-NetFirewallRule -DisplayName "Allow ICMP" -Direction Inbound -Protocol ICMPv4 -Action Allow

5. Check Wintun Driver

powershell

# Check if Wintun driver installed
Get-WindowsDriver -Online | Where-Object {$_.ProviderName -like "*Wintun*"}

# If not installed, reinstall YAT client
# Or manually install Wintun: https://www.wintun.net/

6. Restart WireGuard Service

powershell

# Stop YAT client
Stop-Process -Name "YAT"

# Remove WireGuard adapter
Remove-NetAdapter -Name "YAT-NET1" -Confirm:$false

# Restart YAT client
Start-Process "C:\Program Files\YAT\YAT.exe"

# Wait 10 seconds, check if adapter recreated
Get-NetAdapter | Where-Object {$_.InterfaceDescription -like "*WireGuard*"}

Issue 5: Observe Same-NAT LAN Success

Symptom: Two devices on same LAN (Same-NAT), unsure if successfully using LAN address for direct connection.

Observation Methods:

1. View Member Details

In YAT client:

Go to network detail page
Click target member
View Connection Info

Expected to see:

Path: direct
Endpoint: 192.168.1.101:51820  (LAN address)
Latency: < 5ms

If Endpoint is public IP, LAN address not used.

📸 [Screenshot placeholder] Member details - showing LAN endpoint
Description: Shows path as direct, endpoint as LAN address

2. Check Edge Logs

bash

# View logs on Edge
journalctl -u yat-edge -f | grep -i "same-nat"

# Should see:
# "Detected same-NAT peers: peerA=1.2.3.4, peerB=1.2.3.4"
# "Triggering LAN endpoint gathering"

3. Verify LAN Connectivity

bash

# On device A
ping 192.168.1.101  # Device B's LAN address

# Should succeed
64 bytes from 192.168.1.101: icmp_seq=1 ttl=64 time=0.5ms

4. Check WireGuard Interface

macOS:

bash

# View WireGuard peer endpoints
sudo wg show all

# Should see:
# interface: wg-yat0-abc123
# peer: <peer-B-public-key>
#   endpoint: 192.168.1.101:51820  (LAN address)

Windows:

powershell

# Use WireGuard CLI (if installed)
& "C:\Program Files\WireGuard\wireguard.exe" /showall

# Or view in YAT config panel

5. Force LAN Discovery

If Same-NAT not detected:

Ensure both devices joined network
Wait 30 seconds for Edge to complete endpoint observation
Click Sync Local Adapter on both devices
Check Edge logs for LAN gathering trigger

Issue 6: Endpoint Not Observed

Symptom: Member's endpoint shows empty or "not observed".

Causes:

Client not sending WireGuard handshake
Edge observation interface not working
Firewall blocking UDP traffic

Solution:

1. Check Client WireGuard Status

bash

# macOS
sudo wg show all

# Should see peer and endpoint
# peer: <public-key>
#   endpoint: 1.2.3.4:51820

# Windows
# View WireGuard status in YAT config panel

2. Check Edge Observation Interface

bash

# On Edge
sudo wg show wg-yat0-abc123

# Should see all peers
# peer: <peer-A-key>
#   endpoint: 1.2.3.4:51820
# peer: <peer-B-key>
#   endpoint: 5.6.7.8:51820

3. Check Firewall

bash

# Edge firewall
sudo ufw status
sudo ufw allow 58021:60999/udp

# Client firewall
# macOS: System Settings > Network > Firewall > Allow incoming connections
# Windows: Windows Defender Firewall > Allow app through firewall

4. Force Refresh

Click Sync Local Adapter on client
Wait 5-10 seconds
Check Edge logs: journalctl -u yat-edge -f | grep observation
Should see endpoint update

Issue 7: Relay Forwarding Fails

Symptom: Using force mode but can't communicate via Edge relay.

Causes:

Edge relay listener not started
Target endpoint not observed
Strict NAT blocking relay traffic

Solution:

1. Check Edge Relay Status

bash

# Check if relay listeners are listening
sudo ss -ulnp | grep yat-edge

# Should see:
# udp  0  0  0.0.0.0:59000  0.0.0.0:*  users:(("yat-edge",pid=1234))
# udp  0  0  0.0.0.0:59001  0.0.0.0:*  users:(("yat-edge",pid=1234))

2. Check Target Endpoint

bash

# View target peer's endpoint on Edge
sudo wg show wg-yat0-abc123 | grep -A 2 "peer: <target-key>"

# Should see:
# endpoint: 1.2.3.4:51820

If endpoint empty, relay can't forward.

3. Check Relay Logs

bash

# View relay forwarding logs
journalctl -u yat-edge -f | grep -i relay

# Should see:
# "Relay packet from 59000 to 1.2.3.4:51820"

4. Understand Current Limitations

Important

Current per-peer relay creates upstream sockets with new Edge UDP source ports, not reusing observer's established NAT channel.

In strict endpoint-dependent NAT environments, relay may fail. This is a known incomplete item requiring channel multiplexing implementation.

Temporary Solutions:

Use optional mode, prioritize direct connection
Deploy geographically central Edge to reduce NAT layers
Ensure target device's endpoint has been observed

Platform-Specific Guides

macOS

System Requirements

macOS 10.15+ (Catalina)
Administrator privileges required for helper daemon installation

Helper Daemon Management

bash

# View helper status
launchctl list | grep yat-wg-helper

# Manually start helper
sudo launchctl load /Library/LaunchDaemons/com.yat.wg-helper.plist

# Manually stop helper
sudo launchctl unload /Library/LaunchDaemons/com.yat.wg-helper.plist

# View helper logs
log show --predicate 'process == "yat-wg-helperd"' --last 5m

Power Management

macOS supports Power Assertion to prevent idle sleep:

Go to Settings > System
Enable Prevent system sleep
System won't enter idle sleep when networks active

TIP

Power Assertion only prevents idle sleep, not lid-close or manual sleep. After lid-close, relies on peer's PersistentKeepalive to wake.

Common Issues

Q: WireGuard interface disappears

bash

# Re-sync config
# Click "Sync Local Adapter" in YAT client

# Or restart helper
sudo launchctl unload /Library/LaunchDaemons/com.yat.wg-helper.plist
sudo launchctl load /Library/LaunchDaemons/com.yat.wg-helper.plist

Q: Connection breaks after sleep

bash

# Force re-apply after wake
# Click "Sync Local Adapter" in YAT client

# Or manually trigger
sudo killall -HUP yat-wg-helperd

Windows

System Requirements

Windows 10+ (64-bit)
Wintun driver installation required

Wintun Driver Management

powershell

# Check Wintun driver
Get-WindowsDriver -Online | Where-Object {$_.ProviderName -like "*Wintun*"}

# If not installed, reinstall YAT client
# Or manually install from https://www.wintun.net/

Network Adapter Management

powershell

# View all WireGuard adapters
Get-NetAdapter | Where-Object {$_.InterfaceDescription -like "*WireGuard*"}

# Disable adapter
Disable-NetAdapter -Name "YAT-NET1" -Confirm:$false

# Enable adapter
Enable-NetAdapter -Name "YAT-NET1" -Confirm:$false

# Remove adapter
Remove-NetAdapter -Name "YAT-NET1" -Confirm:$false

Firewall Configuration

powershell

# Allow YAT through firewall
New-NetFirewallRule -DisplayName "YAT" -Direction Inbound -Program "C:\Program Files\YAT\YAT.exe" -Action Allow

# Allow ICMP (ping)
New-NetFirewallRule -DisplayName "Allow ICMP" -Direction Inbound -Protocol ICMPv4 -Action Allow

# Allow UDP traffic (WireGuard)
New-NetFirewallRule -DisplayName "WireGuard UDP" -Direction Inbound -Protocol UDP -LocalPort 51820 -Action Allow

Common Issues

Q: Network adapter not created

powershell

# Check Wintun driver
Get-WindowsDriver -Online | Where-Object {$_.ProviderName -like "*Wintun*"}

# Reinstall YAT client
# Or run YAT as administrator

Q: Can't ping other members

powershell

# Check firewall
Get-NetFirewallRule | Where-Object {$_.DisplayName -like "*ICMP*"}

# If no rules, add
New-NetFirewallRule -DisplayName "Allow ICMP" -Direction Inbound -Protocol ICMPv4 -Action Allow

Linux

System Requirements

Linux 5.6+ (kernel WireGuard support)
Root privileges required

Install WireGuard Tools

bash

# Ubuntu/Debian
sudo apt install wireguard wireguard-tools

# CentOS/RHEL
sudo yum install wireguard wireguard-tools

# Fedora
sudo dnf install wireguard-tools

Check WireGuard Interfaces

bash

# View all WireGuard interfaces
sudo ip link show type wireguard

# Or use wg command
sudo wg show all

# View specific interface
sudo wg show wg-yat0-abc123

Common Issues

Q: Kernel doesn't support WireGuard

bash

# Check kernel version
uname -r

# If < 5.6, upgrade kernel
sudo apt install linux-image-generic
sudo reboot

Q: Missing permissions

bash

# Ensure YAT runs as root
sudo ./yat

# Or use sudo
sudo -E ./yat

💡 Best Practices

1. Network Planning

✅ Use /24 subnet (supports 254 devices)
✅ Avoid conflicts with existing subnets (e.g., 192.168.1.0/24)
✅ Create different networks for different purposes (office, test, production)

2. Security Recommendations

✅ Regularly review network members
✅ Remove inactive devices promptly
✅ Use strong passwords for YAT account
✅ Enable two-factor authentication (if supported)

3. Performance Optimization

✅ Prioritize direct connection paths
✅ Choose geographically central Edge
✅ Avoid direct connection in symmetric NAT environments
✅ Regularly monitor connection quality

4. Fault Prevention

✅ Keep YAT client updated
✅ Regularly check Edge health
✅ Backup important configurations
✅ Document network topology and IP assignments

Transport Modes - Understand Relay/P2P/WireGuard differences
Edge Management - Deploy and manage Edge servers
Multi-Device & Roles - Multi-device collaboration and permissions
FAQ - Solve other common issues

Last updated: 2026-09-18YAT Team - Making intranet penetration simpler

WireGuard Networking Guide ​

📋 Table of Contents ​

What is WireGuard Networking ​

Core Concepts ​

How It Works ​

Comparison with Tunnel Mode ​

Quick Start ​

Prerequisites ​

Step 1: Create a WireGuard Network ​

Step 2: Join Local Device ​

Step 3: Invite Other Devices ​

Step 4: Verify Connection ​

Step 5: View Connection Details ​

Advanced Optimization ​

Relay Mode Selection ​

1. optional Mode (Recommended) ​

2. force Mode ​

3. disabled Mode ​

Switching Relay Mode ​

Understanding Connection Paths ​

Direct Path ​

Relay Path ​

P2P Session Status & Health Indicators ​

Session Lifecycle ​

Health Status Meaning ​

Session Shows Failed But Actually Connected ​

Troubleshooting the Health Banner ​

Optimization Tips ​

1. Devices on Same LAN ​

2. Cross-Region Devices ​

3. Symmetric NAT Environment ​

4. Performance-Sensitive Scenarios ​

Self-Maintained Edge Configuration ​

Edge WireGuard Requirements ​

Key Configuration Explained ​

1. enabled: true ​

2. relay.enabled ​

3. listen_port_base: 58021 ​

4. peer_relay_port_base: 59000 ​

5. public_endpoint ​

Deployment Verification ​

Common Configuration Issues ​

Q: Edge fails to start with "WireGuard initialization failed" ​

Q: Clients can't connect to relay ​

Q: Relay mode switch doesn't take effect ​

Troubleshooting ​

Issue 1: Need to Manually Click "Join Local Device" ​

Issue 2: Networking Fails, Try "Sync Local Adapter" ​

Issue 3: macOS WireGuard Debugging ​

1. Check Helper Daemon ​

2. Check Unix Socket ​

3. View Helper Logs ​

4. Check boringtun Process ​

5. Manual Helper Test ​

6. Force Re-apply ​

Issue 4: Windows Check Network Adapter Creation ​

1. Check Network Adapter ​

2. Check IP Configuration ​

3. Check Route Table ​

4. Test Connectivity ​

5. Check Wintun Driver ​

6. Restart WireGuard Service ​

Issue 5: Observe Same-NAT LAN Success ​

1. View Member Details ​

2. Check Edge Logs ​

3. Verify LAN Connectivity ​

4. Check WireGuard Interface ​

5. Force LAN Discovery ​

Issue 6: Endpoint Not Observed ​

1. Check Client WireGuard Status ​

2. Check Edge Observation Interface ​

3. Check Firewall ​

4. Force Refresh ​

Issue 7: Relay Forwarding Fails ​

1. Check Edge Relay Status ​

2. Check Target Endpoint ​

3. Check Relay Logs ​

4. Understand Current Limitations ​

Platform-Specific Guides ​

macOS ​

WireGuard Networking Guide

📋 Table of Contents

What is WireGuard Networking

Core Concepts

How It Works

Comparison with Tunnel Mode

Quick Start

Prerequisites

Step 1: Create a WireGuard Network

Step 2: Join Local Device

Step 3: Invite Other Devices

Step 4: Verify Connection

Step 5: View Connection Details

Advanced Optimization

Relay Mode Selection

1. `optional` Mode (Recommended)

2. `force` Mode

3. `disabled` Mode

Switching Relay Mode

Understanding Connection Paths

Direct Path

Relay Path

P2P Session Status & Health Indicators

Session Lifecycle

Health Status Meaning

Session Shows Failed But Actually Connected

Troubleshooting the Health Banner

Optimization Tips

1. Devices on Same LAN

2. Cross-Region Devices

3. Symmetric NAT Environment

4. Performance-Sensitive Scenarios

Self-Maintained Edge Configuration

Edge WireGuard Requirements

Key Configuration Explained

1. `enabled: true`

2. `relay.enabled`

3. `listen_port_base: 58021`

4. `peer_relay_port_base: 59000`

5. `public_endpoint`

Deployment Verification

Common Configuration Issues

Q: Edge fails to start with "WireGuard initialization failed"

Q: Clients can't connect to relay

Q: Relay mode switch doesn't take effect

Troubleshooting

Issue 1: Need to Manually Click "Join Local Device"

Issue 2: Networking Fails, Try "Sync Local Adapter"

Issue 3: macOS WireGuard Debugging

1. Check Helper Daemon

2. Check Unix Socket

3. View Helper Logs

4. Check boringtun Process

5. Manual Helper Test

6. Force Re-apply

Issue 4: Windows Check Network Adapter Creation

1. Check Network Adapter

2. Check IP Configuration

3. Check Route Table

4. Test Connectivity

5. Check Wintun Driver

6. Restart WireGuard Service

Issue 5: Observe Same-NAT LAN Success

1. View Member Details

2. Check Edge Logs

3. Verify LAN Connectivity

4. Check WireGuard Interface

5. Force LAN Discovery

Issue 6: Endpoint Not Observed

1. Check Client WireGuard Status

2. Check Edge Observation Interface

3. Check Firewall

4. Force Refresh

Issue 7: Relay Forwarding Fails

1. Check Edge Relay Status

2. Check Target Endpoint

3. Check Relay Logs

4. Understand Current Limitations

Platform-Specific Guides

macOS
